Survey Tools

  • Cart 3

    Designed to handle sensors as short as an R3/D1 and as long as the R64/D421. Speed rated for hand towed surveys or very slow vehicle towing. Construction is completely metal free to provide quantitative and repeatable survey results.

    Cart 3 Information

  • External Logger

    Introduced in 2017, the Geosensors Logger is a three-channel serial data logger and EM sensor power supply. The Logger uses a free iOS app to provide user control and real-time data display. The Logger records EM sensor NMEA data as well as serial NMEA data from an external GPS unit and an auxiliary serial device. Allows for a live map view and surveyed tracks, with precision to the level of the chosen GPS unit.

    Logger Information

  • Snap-in Battery Adapter

    A new addition to our lineup, the Snap-in Battery Adapter is hard-mounted directly to the sensor. The Adapter allows the user to power their sensor directly from a standard removable battery pack Secured carefully to reduce noise with offset numbers provided to user to maintain quantitative results.

    Battery Adapter Information

Cables

Whether the need is a broken cable from the last survey or a desire to power and connect to your sensor in a different way, we have what you need. We offer two different communication options. The first is our serial data cable providing power from spade connections or a 12v car outlet and data connection via DB9 connector. Alternatively we also offer a USB interface to provide both power and communications, not quite as rugged out in the field, but very convenient for operating stationary surveys or when preparing an instrument before taking it out to the field. We also offer Turck microfast extension cables in 1,2 6 and 10m lengths or 6m M12 cables

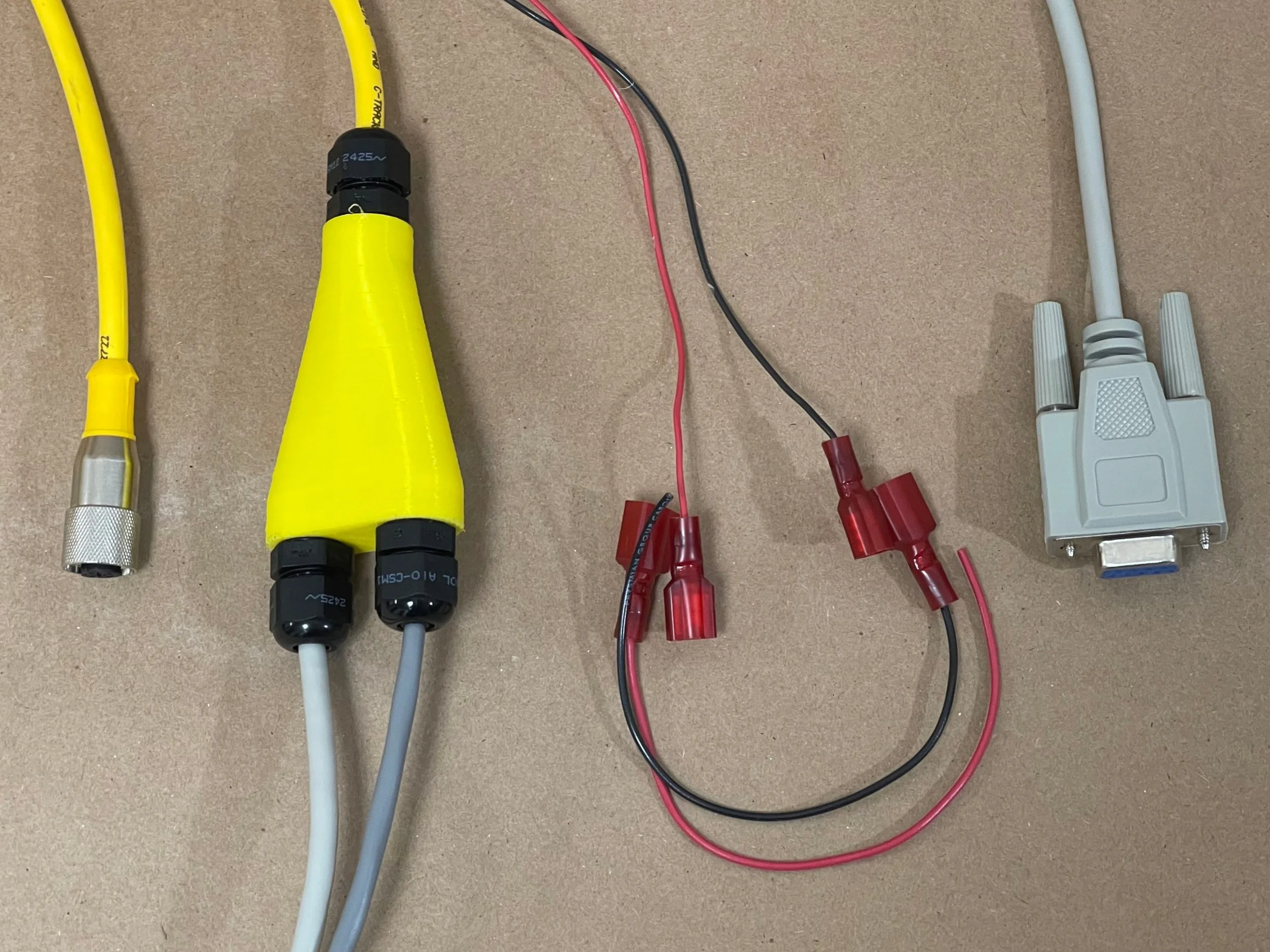

MicroFast Connector to DB9 with pigtail power leads

M12 to DB9 with car lighter plug for power

M12 to USB for power and data
